UNE-EN ISO 20471:2013/A1:2017
This standard specifies the minimum requirements for high-visibility protective clothing capable of visually signaling the wearer’s presence, intended to provide wearer perceptibility in hazardous situations in any daytime condition and under headlamp lighting in the dark. Performance requirements are included for color and retroreflection, as well as for minimal areas and for the placement of materials in protective clothing.
| TEST METHOD | TEST STANDARD | DESCRIPTION | REQUIREMENTS | ||
| DIMENSIONAL STABILITY | EN 13688 | % shrinkage after wash cycles according to the fabric manufacturer’s instructions.
By default 5 cycles minimum. |
Background material and non-fluorescent material:
Openwork fabric Max. ± 3 % warp/weft Knitwear Max. ± 5 % length/width |
||
| TENSILE STRENGTH
(Openwork fabric) |
ISO 13934-1 | Original fabric
Dynamometer |
Bottom material and non-fluorescent material ≥ 100 N warp/weft | ||
| TENSILE & TEAR STRENGTH FOR COATED AND LAMINATED FABRICS | ISO 1421 mét 1
ISO 4674 |
Not applicable to fabrics with elongation greater than 50 % | Tensile strength background material ≥ 100 N
Tear strength background material ≥ 20 N |
||
| BURST RESISTANCE
(Knitted fabric) |
ISO 13938-1
o ISO 13938-2 |
Fabric in original, Sclatometer | Background material and non-fluorescent material:
Test area 50 m2 ≥ 100 kPa Test area 7.3 cm2 ≥ 200 kPa |
||
| DETERMINATION OF WATER VAPOR RESISTANCE AND THERMAL RESISTANCE
If rain protection sort according to EN 343 |
ISO 11092 | Hot plate, climatic chamber | Ret ≤ 5 m2Pa/W
If Ret > 5 m2Pa/W –> calculation Water Vapor Permeability Index (Imt) Imt = (Rct * 60) /Ret –> Imt ≥ 0.15. |
||
| COLOUR FASTNESS TO PERSPIRATION | ISO 105-E04 | Solution: Acidic pH & Alkaline PH, Multifiber Testimonial, Grayscale | Staining & colour change ≥ 4 | ||
| COLOUR FASTNESS TO DRY CLEANING | ISO 105-D01 | Gyrowash, Solvent, Multifiber Testimonial | Bottom Material: Staining & colour change ≥ 4
Non-fluorescent material: Staining ≥ 4 |
||
| COLOUR FASTNESS TO DOMESTIC AND COMMERCIAL WASHING | ISO 105-C06 | Washing temperature indicated by the manufacturer, multifiber testimonial fabric, Gyrowash, Gray scale | Bottom Material: Staining & colour change ≥ 4
Non-fluorescent material: Staining ≥ 4 |
||
| COLOUR FASTNESS HOT PRESSING | ISO 105-X11 | Ironing technique indicated by the manufacturer, dry ironing, pressure 1 kPa, 15 seconds | Bottom Material: Staining & colour change ≥ 4
Non-fluorescent material: Staining ≥ 4 |
||
| COLOUR FASTNESS TO RUBBING | ISO 105-X12 | Crockmeter, Force 9 N, 10 cycles Gray scale | Staining ≥ 4 | ||
| CHROMATIC COORDINATES AND LUMINANCE FACTOR. | Acceptance Area | Luminance Factor | Colour | ||
| CIE 15.2
CIE D65 Illuminant |
BACKGROUND MATERIAL COLOR IN NEW CONDITION |  |
Min. 0.70 | Yellow HV | |
| EN 6330 | BACKGROUND MATERIAL COLOR AFTER HOUSEHOLD WASHING (IF APPLICABLE) |  |
Min. 0.40 | Orange HV | |
| EN 15797 | BACKGROUND MATERIAL COLOR AFTER INDUSTRIAL WASHING (IF APPLICABLE) |  |
Min. 0.25 | Red HV | |
| CHROMATIC COORDINATES AND LUMINANCE FACTOR. | Acceptance Area | Luminance Factor | Colour | ||

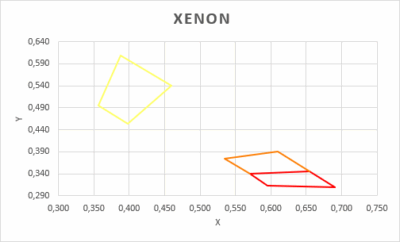

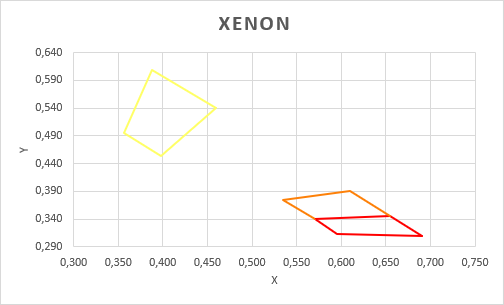

| ISO 105-B02 Method 3 | BACKGROUND MATERIAL COLOR AFTER XENON TEST |  Exposure should continue until blue scale level 5 has changed to grayscale grade 3 for red and orange-red materials and for yellow materials, blue scale level 4 reaches grayscale level 4 according to ISO 105-A02 |
Min. 0.70
Min. 0.40 Min. 0.25 |
Yellow HV
Orange HV Red HV |
|
| MINIMUM VISIBLE AREA IN m2 | |||||
| MATERIAL | CLASS 3 | CLASS 2 | CLASS 1 | ||
| BACKGROUND MATERIAL | 0,80 | 0,50 | 0,14 | ||
| RETROREFLECTIVE MATERIAL (3M TAPE) | 0,20 | 0,13 | 0,10 | ||
| COMBINED MATERIAL | n.a. | n.a. | 0,20 | ||
| NOTE: THE CLOTHING CLASS IS DETERMINED BY THE LOWEST AREA OF VISIBLE MATERIAL | |||||
DESIGN
-
- High-visibility clothing is grouped into three classes. Each class shall have minimum areas of visible materials incorporated into the garment.
- The garment will be made with high visibility material on all sides. It is important that the self-reflective bands surround the torso, legs and sleeves.
- A class 3 garment must cover the torso and must have at least sleeves with retro-reflective bands or long legs with retro-reflective bands, if not both.
- At least (50 ± 10%) of the minimum visible background material area must be on the front of the garment.
- There are specific requirements depending on the type of garment
